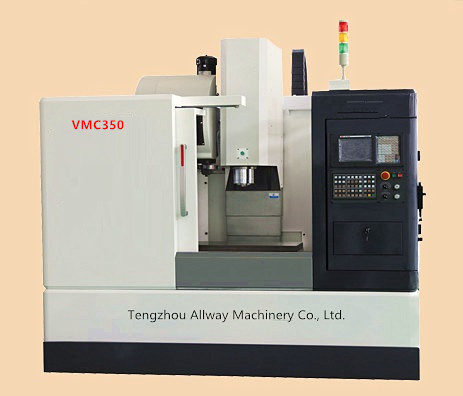

VMC350 CNC Vertical Machining Center: Product model：VMC350; Product origin：China; Release date：2024-04-09; Browse times：次; Telephone consultation：0632-5032878; Key word：Vertical Machining center, CNC machine,CNC Milling Machine, VMC; share： QQ Wechat Tencent micro-blog More; Next product Last product

ITEM/MODEL		Unit	VMC350
TABLE	Table size(L*W)	mm	600 x240
	Max.loading capacity of table	Kg	200
	TABLE T-slot number		3
	T-slot width	mm	16
	T-slot space	mm	80
STROKE	X-axis stroke	mm	350
	Y-axis stroke	mm	240
	Z-axis stroke	mm	400
	Spindle center line to Z-axis guide-way surface	mm	100-420
SPINDLE	Spindle motor power	Kw	2.2
	Spindle Max.spindle speed(belt)	rpm	5000
	Spindle hole		BT30
MOVING SPEED	X-axis rapid speed	m/min	12
	Y-axis rapid speed	m/min	12
	Z-axis rapid speed	m/min	10
	Max.cutting speed	m/min	10
ATC	ATC capacity	T	12
	Max.diameter of tool	mm	￠80
	Max.length of tool	mm	200
	Max.weight of tool	Kg	5
ACCURACY	XYZ-axis positioning accuracy	mm	0.012
ACCURACY	XYZ-axis repeatability	mm	0.006
Overall	Machine size(LWH)	mm	194016001800
Overall	Machine weight	Kg	1500
